Description

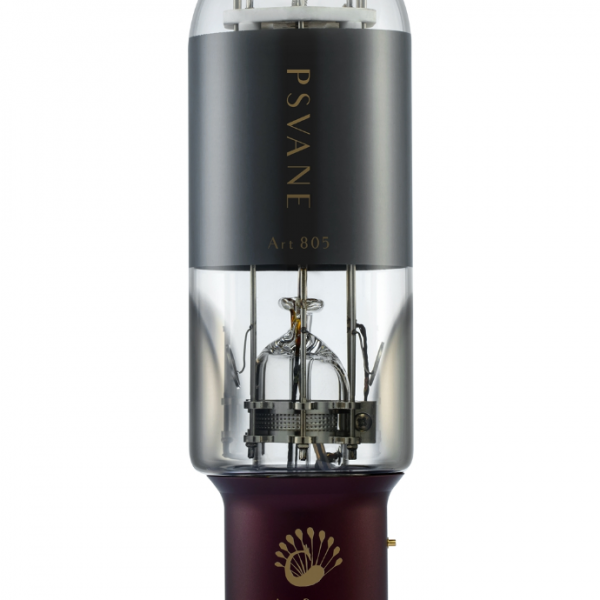

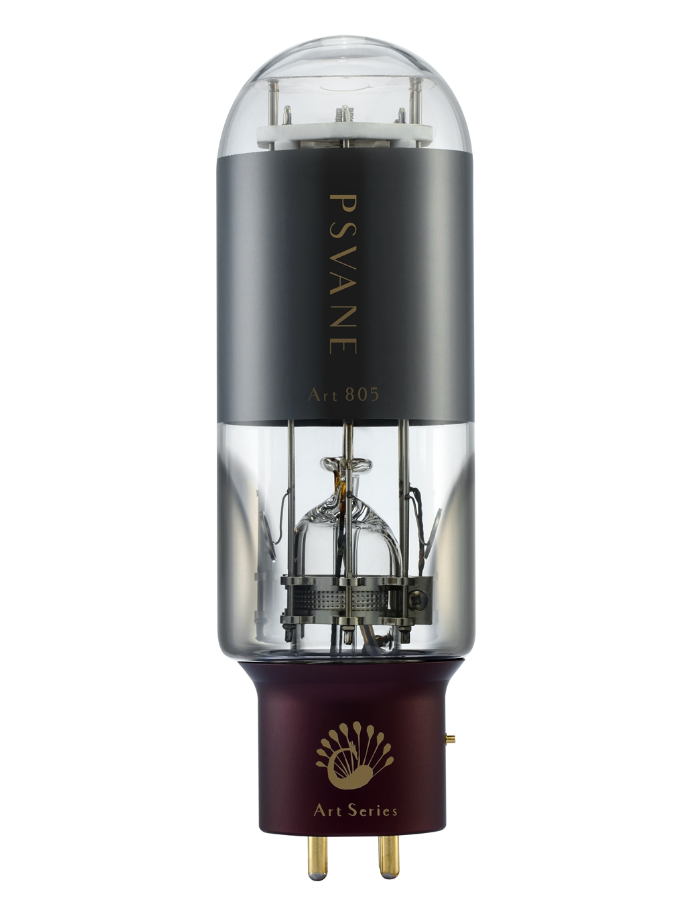

PSVANE ART 805-TIII Vacuum Tube
The PSVANE ART 805-TIII Vacuum Tube delivers warm, dynamic tones and exceptional stability, making it an ideal choice for audiophiles and high-performance audio systems. Each tube comes with an exactly matched pair service and a 12-month warranty, ensuring top-tier performance and reliability for your audio setup.
Technical Specifications
Filament Voltage and Current
| Parameter | Values |
|---|---|
| Uf | 10 V |
| If | 3.25 A |
Maximum Ratings
| Parameter | Values |
|---|---|
| Anode Voltage (Ua) | 1500 V |
| Anode Dissipation Power (Pa) | 125 W |
| Maximum Anode Current (Ia) | 210 mA |
Inter-Electrode Capacitance
| Parameter | Values |
|---|---|
| Input Capacitance | 8.5 pF |
| Output Capacitance | 10.5 pF |
| Cross-Coupling Capacitance | 6.5 pF |
Static Parameters
| Parameter | At Ua = 1250 V | At Ua = 1500 V |
|---|---|---|
| Anode Voltage (Ua) | 1250 V | 1500 V |
| Grid Voltage (Ug) | 0 V | -10 V |
| Anode Current (Ia) | 70 mA | 60 mA |
Warranty and Service
Each PSVANE ART 805-TIII Vacuum Tube comes with an exactly matched pair service and a 12-month warranty for your peace of mind.
Explore more premium vacuum tubes or check out our PSVANE product lineup for additional options.
