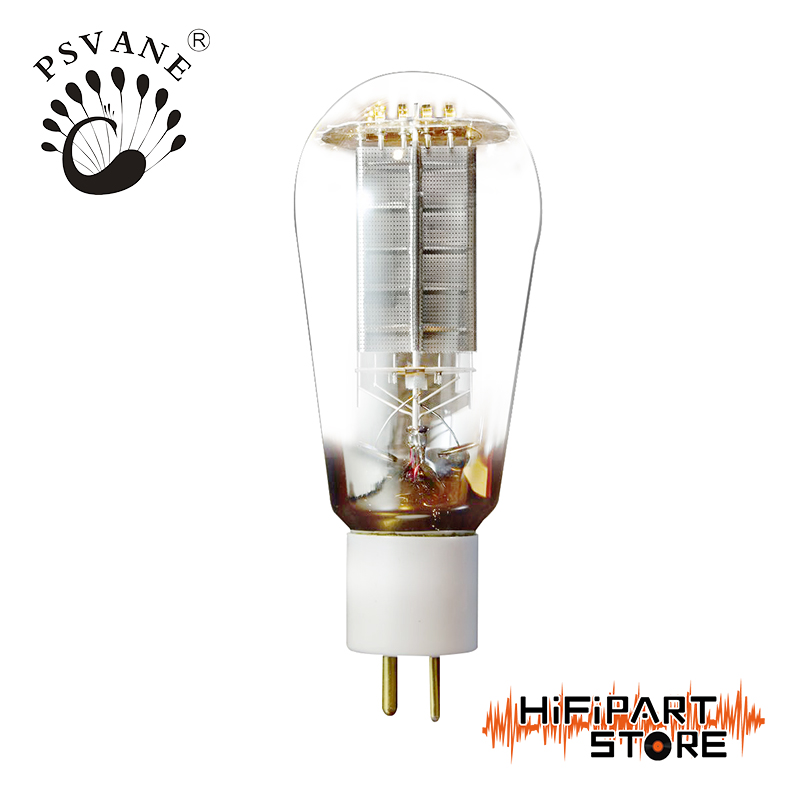

Psvane HiFi 300B/N

Chinese Psvane HiF 300B/N (Metal grid plate).
We ensure that you will feel amazed to able to enjoy that attractive sound of the 1000 multiple- priced 300B in the field of so many 300B tube amplifiers! You can even find the sound negative of the top Reproducing WE300B, which are the random tubes of more than 200,000 top tubes! PSVANE 300B-N not only have the sound feature of 300B, but also its attractive appearance, wonderful tone color, are closer to the English ancient famous tube GEC PX4! With its sound even similar to GEC, absolutely is a great item worth to recommend to you!

Psvane HiFi 300B/N
Categories: , Tags: ,
Share:

Description

Psvane HiFi 300B/N

Psvane HiFi 300B/N

Psvane HiFi 300B/N

Psvane HiFi 300B/N

300BN is an item of HIFI Series, with the tube department of this type all adopt screen structure, lifting hook filament, gold plated pins, and the essential part of tubes transplant technologies of producing PSVANE Reproducing Western Economics, it is the mid-priced 300B tube item with great cost performance.

Heater
Uf(DC)………………5V
If(DC) …………… 1.2A

Maximum Rating

Ua……………480V
Pa………40W

Ik
with cathode bias………………100 mA
with fixed bias……………70 mA
Direct Interelectrode Capacitances
input……………9PF
output……………4.3PF
grid to plate……………15PF
Static parameter

Ua……………………300V
-Ug………………… 60V
Ia……………………60mA
Gm……………………5.5mA/V
ri……………………0.7 KΩ
u ……………………3.85
Pout…………………6.6W

typical workong parameter
aodio amplifier
class A1
Ua -Ug Ia RL Pout 2nd
V V mA Ω W db
200 42 30 2000 3 20
200 39 40 2500 2.6 26
250 55 30 2000 4.9 18
250 52 40 3000 4.0 26
250 50 50 2500 4.4 26
250 48 60 2000 4.7 26
250 48 60 2700 4.1 30
250 45 80 1500 5.0 26
300 65 40 2500 6.7 20
300 63 50 2000 7.2 21
300 63 50 3000 6.1 26
300 61 60 2400 6.6 26
300 58 80 1700 7.5 26
350 76 50 3600 7.8 26
350 74 60 2000 10.2 21
350 74 60 3000 8.3 26
350 74 60 4000 7.0 30
350 71 80 2200 9.6 26
400 91 40 5000 8.4 26
400 89 50 1000 11.5 21
400 89 50 4000 9.4 25
400 87 60 3500 10.5 26
400 84 80 2500 12.5 25
450 104 40 6000 9.5 26
450 102 50 5000 10.7
