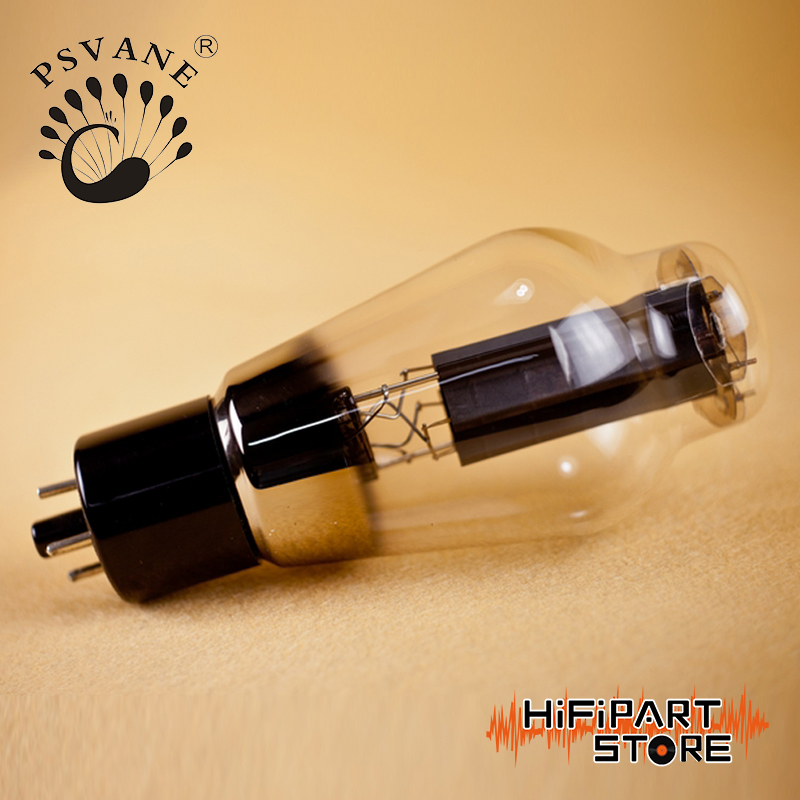

Psvane HiFi 274B

Psvane HiFi 274B.
Glass shell eight feet directly heated full-wave rectifier,274B is very similar with 5U4G and 5Z3P, which can be replaced by each other.

Psvane HiFi 274B
Categories: ,
Share:

Description

Psvane HiFi 274B

Psvane HiFi 274B

Psvane HiFi 274B

Psvane HiFi 274B

Psvane HiFi 274B

Glass shell eight feet directly heated full-wave rectifier,274B is very similar with 5U4G and 5Z3P, which can be replaced by each other.
Heater
Uf………………5V
If…………… 2.5A

Maximum Rating
anode inverse peak voltage……………1550V
anode peak current ………750mA

Recommend working condition

Anode supply voltage 2×500V
Each arm impedance 75Ω
load impedance 2000Ω
Filter capacitor 4μF
Rectifier current ≧230mA
