Description

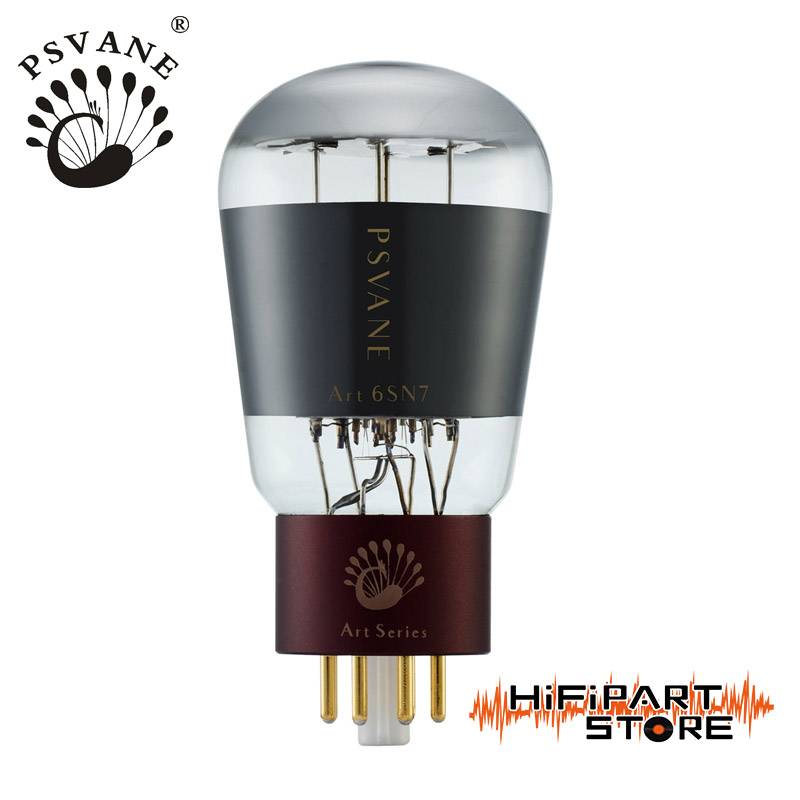

PSVANE ART 6SN7-TIII Vacuum Tube
The PSVANE ART 6SN7-TIII Vacuum Tube is designed to deliver balanced, warm tones with remarkable stability, making it perfect for achieving lifelike sound in premium audio setups. Whether you’re an audiophile or a professional, this tube ensures top-tier performance and reliability.
Technical Specifications
Heater Voltage and Current
| Parameter | Values |
|---|---|
| UH | 6.3 V |
| IH | 0.6 A |
Maximum Ratings for Class A1 Amplification (per side)
| Parameter | Values |
|---|---|
| Ua | 450 V |
| Ik | 20 mA |
| Pa | 5 W |
| Pa (No.1 + No.2) | 7.5 W |
| Rg | 1 MΩ |
| Uhk | ±100 V |
Static Parameters
| Parameter | At Ua = 90 V, Ug = 0 V | At Ua = 250 V, Ug = -8 V |
|---|---|---|
| Ua | 90 V | 250 V |
| Ug | 0 V | -8 V |
| Ia | 10 mA | 9 mA |
| Gm | 3 mA/V | 2.6 mA/V |
| Ri | 6.7 kΩ | 7.7 kΩ |
| μ | 20 | 20 |
| Ia (at Ug = -12.5V) | — | 1.3 mA |
| Ug (at Ia = -10μA) | -7 V | -18 V |
Warranty and Service
Each PSVANE ART 6SN7-TIII Vacuum Tube comes with an exactly matched pair service and a 12-month warranty for your peace of mind.
