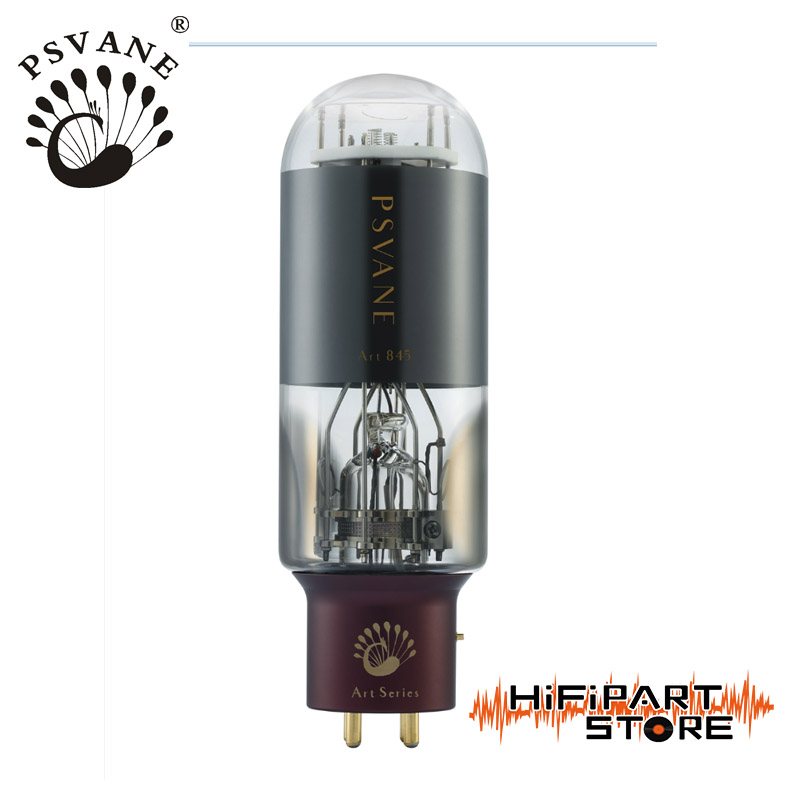

PSVANE ART 845-TIII Vacuum Tube
The PSVANE ART 845-TIII Vacuum Tube is designed to deliver rich, warm sound and exceptional stability, making it an ideal choice for audiophiles and those seeking high-end audio setups. Each tube comes with an exactly matched pair service and a 12-month warranty, ensuring top-tier performance and reliability.
Technical Specifications
Filament Voltage and Current
| Parameter | Values |
|---|---|
| Uf | 10 V |
| if | 3.25 A |
Maximum Ratings
| Parameter | Values |
|---|---|
| Anode Voltage (Ua) | 1250 V |
| Anode Dissipation Power (Pa) | 75 W |
| Output Power (at maximum signal) | 150 W |
| Maximum Anode Current (Ia) | 120 mA |
Inter-Electrode Capacitance
| Parameter | Values |
|---|---|
| Input Capacitance | 6 pF |
| Output Capacitance | 6.5 pF |
| Cross-Coupling Capacitance | 14.5 pF |
Static Parameters
| Parameter | Values |
|---|---|
| Ua | 1250 V |
| Ug | -200 V |
| Ia | 80 mA |
| Gm | 3 mA/V |
| ri | 1.7 kΩ |
| μ | 5 |
| Load Resistance (RL) | 3.4 kΩ |
| Peak Grid Voltage (Ug(pk)) | 69 V |
| Output Power (Pout) | 15 W |
Warranty and Service
Each PSVANE ART 845-TIII Vacuum Tube comes with an exactly matched pair service and a 12-month warranty for your peace of mind.
Explore more premium vacuum tubes or check out our PSVANE product lineup for additional options.
