Description

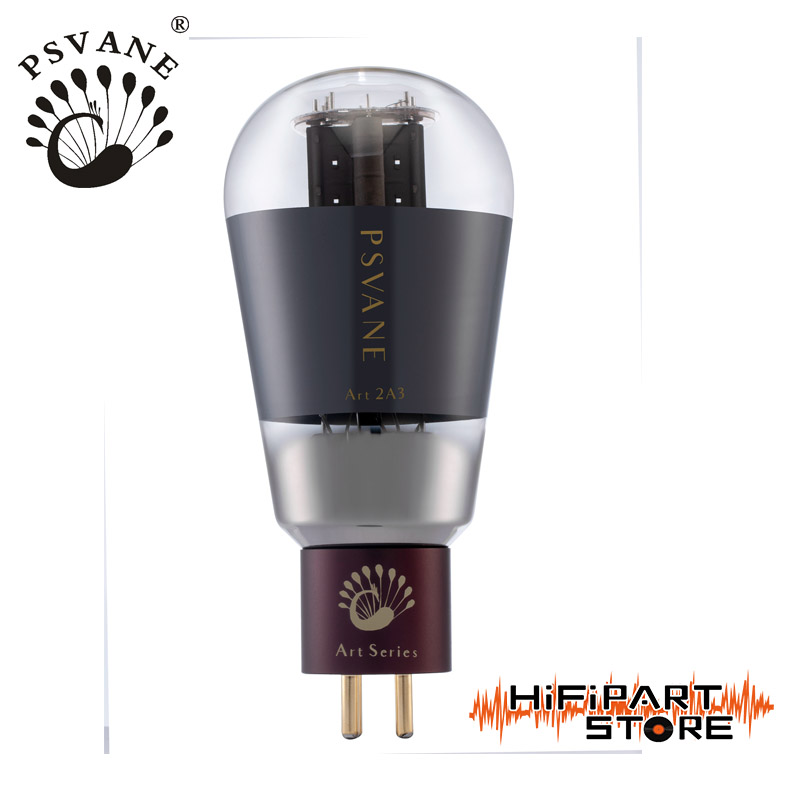

PSVANE ART 2A3-TIII Vacuum Tube
The PSVANE ART 2A3-TIII Vacuum Tube is designed to deliver warm, rich tones with superior stability, making it an ideal choice for audiophiles seeking an immersive, high-end audio experience. This premium vacuum tube ensures that your music comes to life with depth and clarity, providing a listening experience like no other, backed by an exactly matched pair service and a 12-month warranty.
Technical Specifications
Filament Voltage and Current
| Parameter |
Values |
| Uf |
2.5 V |
| If |
2.5 A |
Maximum Ratings
| Parameter |
Values |
| Anode Voltage (Ua) |
300 V |
| Anode Dissipation Power (Pa) |
25 W |
Inter-Electrode Capacitance
| Parameter |
Values |
| Input Capacitance |
7.5 pF |
| Output Capacitance |
5.5 pF |
| Cross-Coupling Capacitance |
16.5 pF |
Static Parameters
| Parameter |
Values |
| Ua |
250 V |
| Ug |
-45 V |
| Ia |
60 mA |
| Gm |
5.25 mA/V |
| ri |
0.8 kΩ |
| μ |
4.2 |
| Output Power (Pou) |
3.5 W |
Warranty and Service
Each PSVANE ART 2A3-TIII Vacuum Tube comes with an exactly matched pair service and a 12-month warranty, ensuring top-tier performance and reliability.
