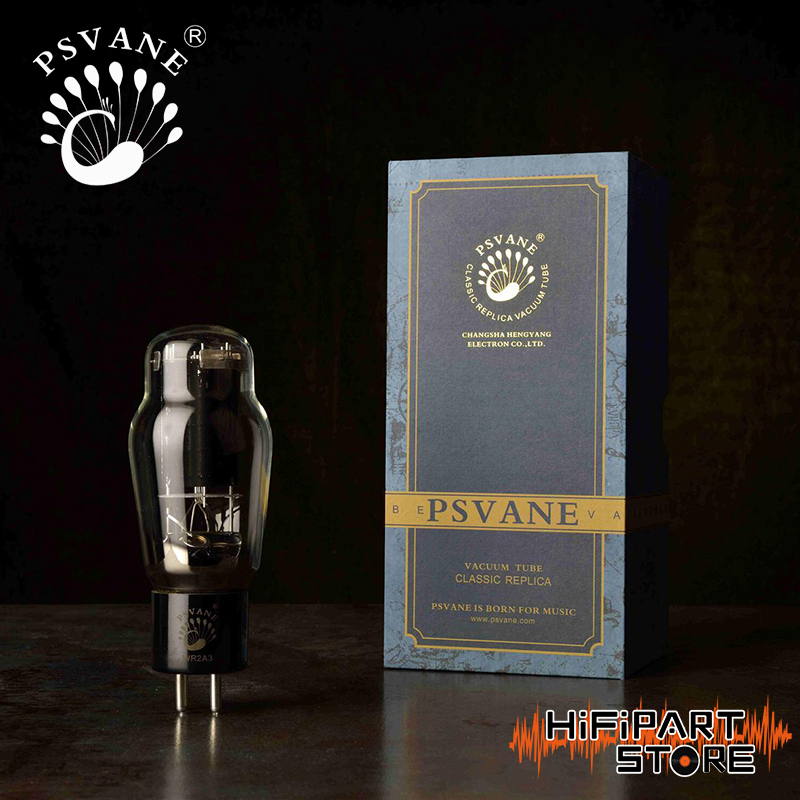

Psvane WR2A3

Chinese Psvane WR2A3
Psvane WE/RCA Replica, hybrid of WE300B and RCA 2A3, can replace 2A3.
If you have been dreaming of experiencing high fidelity audio in the old fashioned tube way, this WE Replica series may just bring you back in time to the 1930’s with the same look, same feel and even ‘almost’ (we cannot say 100% as listening is a very subjective matter varying from person to person) the same good old sound.

Psvane WR2A3- a whole new substitute for 2A3, the world’s first hybrid of WE300B and RCA single plate 2A3:

The WR2A3 tube is a whole new creation – it is not a replica of any tubes existed in the history before. WR2A3 was created to combine the bottle shape, structure and materials of Western Electric 300B with the electrical specification of RCA single plate 2A3 to get the best of both worlds. The end result is – a silky, open and extended top frequency that has never be available with any 2A3 tubes before.

WR2A3 and WE275 Replica both are substitute for 2A3 tubes on auto biased tube amps. It is worth to mention that WE275 replica has negative grid voltage -60V, not the standard 2A3’s -45V. In a manual bias 2A3 amp, the bias current has to be adjusted to avoid red plate happening on the WE275 replica.

Psvane WR2A3
Categories: , Tags: ,
Share:

Description

Psvane WR2A3

Psvane WR2A3

Psvane WR2A3

Psvane WR2A3

Psvane WR2A3

Heater

Uf………………2.5V
If…………… 2.5A

Static Parameter
Ua……………………250V
-Ug………………… -45V
Ia……………………60mA
Gm……………………5.25 mA/V
ri……………………800Ω
u ……………………4.2
Pout…………………3.5W

Maximum Rating
Ua……………300V
Pa………15W
Direct Interelectrode Capacitances

Grid to plate ……………12PF
Grid to filament ……………6.8PF
Plate to filament……………3.2PF
