Psvane HiFi 6SN7(bakelite base)

Psvane HiFi 6SN7(bakelite base).

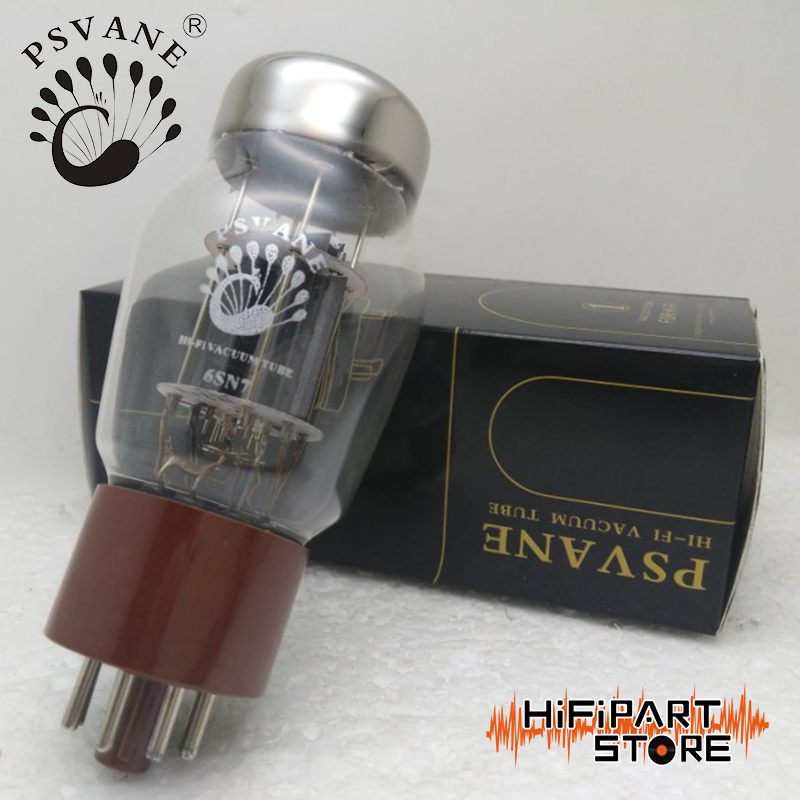

Double triode 6SN7 is glass shell octal, in radio device, used for multivibrator or as resistance and capacitance coupled amplifying circuit.

Psvane HiFi 6SN7(bakelite base)
Categories: ,
Share:

Description

Psvane HiFi 6SN7(bakelite base)

Psvane HiFi 6SN7(bakelite base)

6SN7 double triode 6SN7 is glass shell octal, in radio device, used for multivibrator or as resistance and capacitance coupled amplifying circuit.

Heater
UH …………………………6.3 V
IH…………………………0.6 A

Direct Interelectrode Capacitances

No.1   No.2
input    2.2   2.6 PF
output    0.7   0.7 PF
grid to plate  4    3.8 PF

Maximum Rating
class A
Ua 450 V
Ik 20 mA
Pa 5 W
Pa(No.1+No.2) 7.5 W
UH-k ±100 V
Rg 1 MΩ

Static Parameter
Ua………………… 90 250 V
Ug……………………0 -8 V
Ia…………………10 9 mA
Gm……………………3 2.6 mA/V
μ……………………20 20
ri……………………6.7 7.7 kΩ
Ia when Ug=-12.5V – 1.3 mA
Ug when Ia=-10μV -7 -18 V
