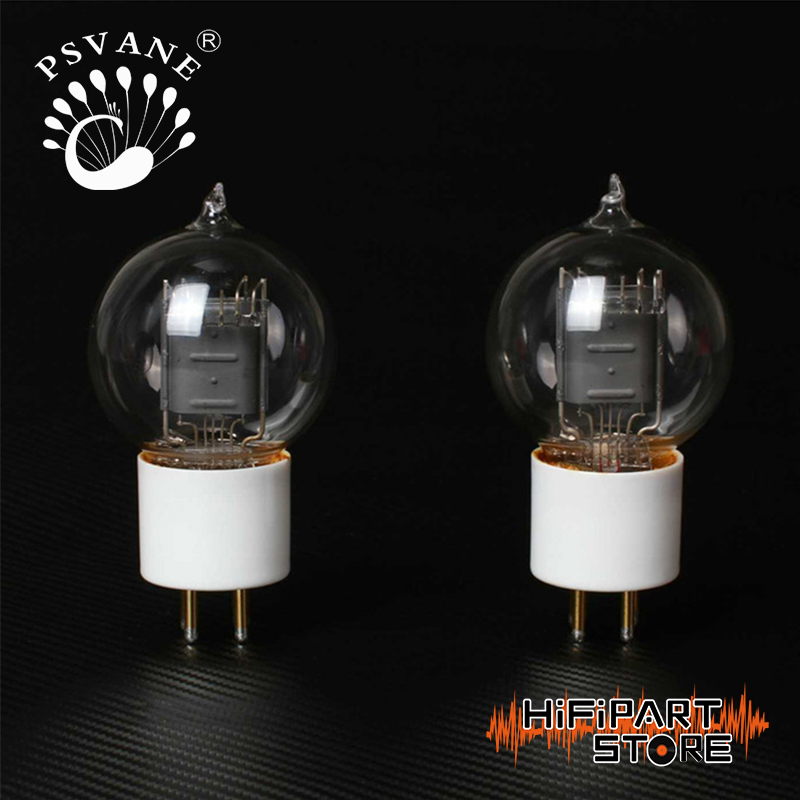

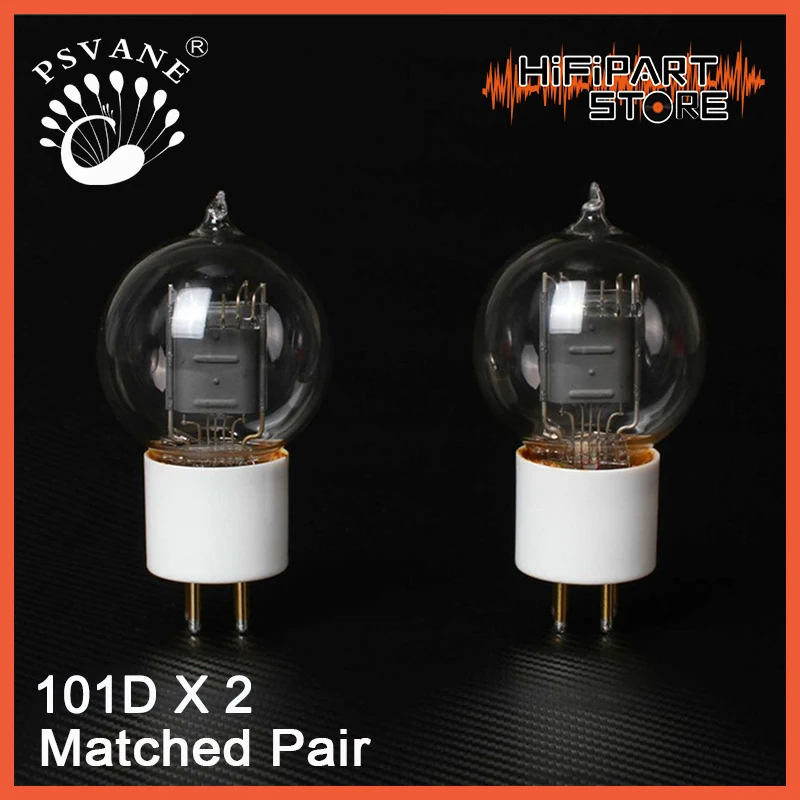

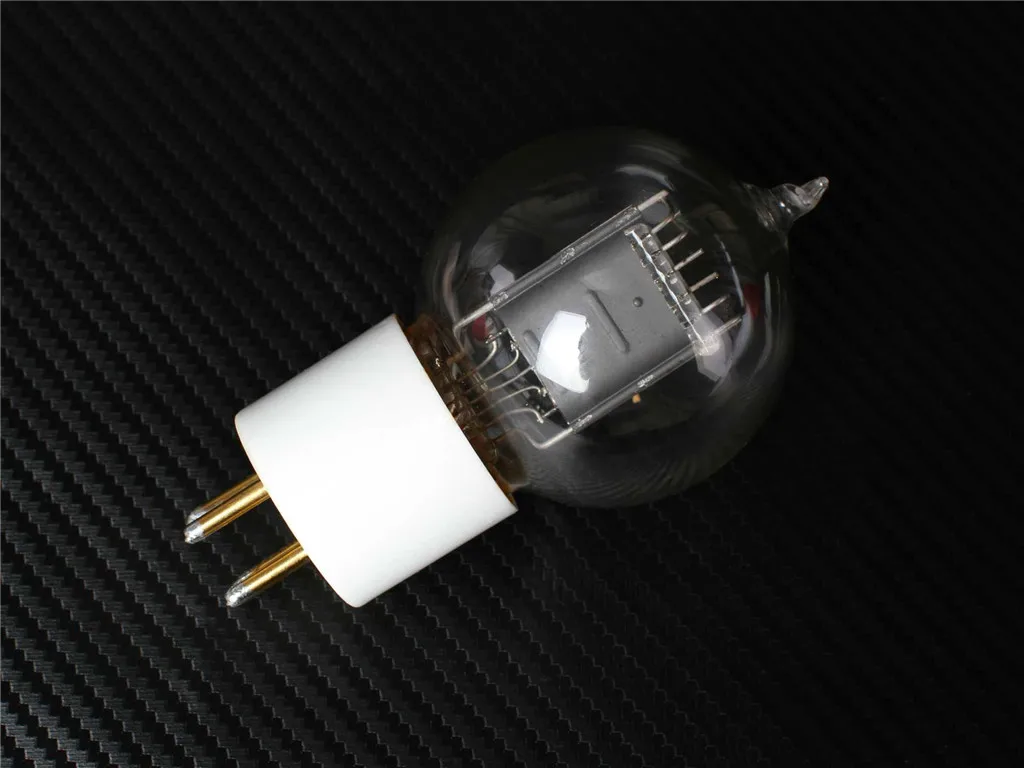

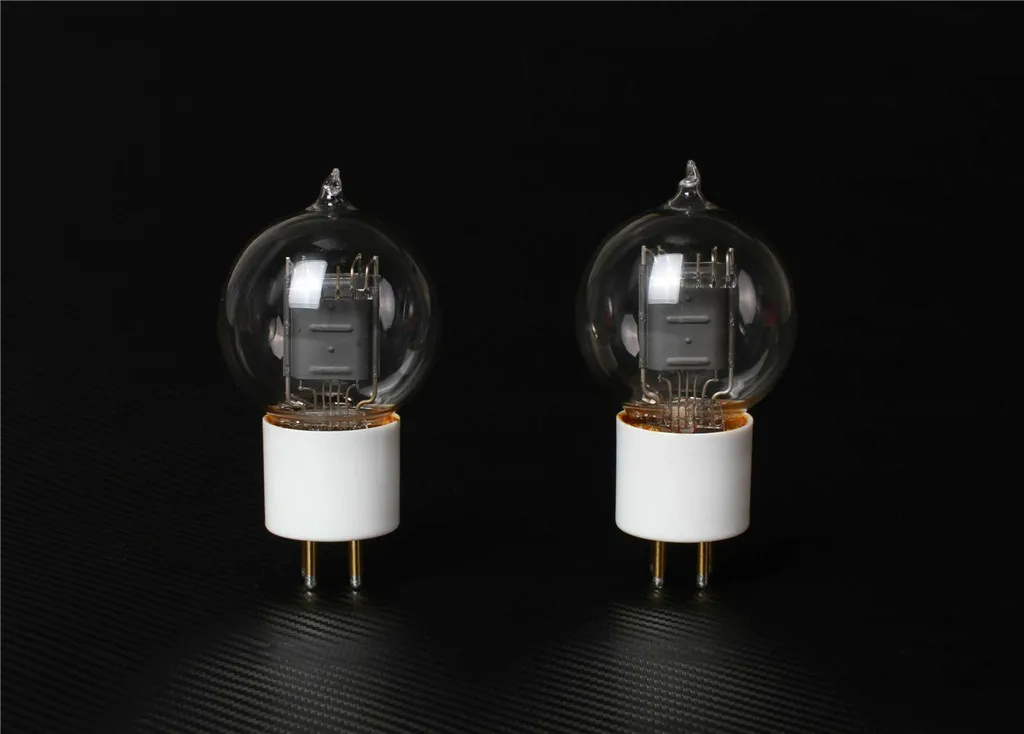

Psvane HiFi 101D

Psvane HiFi 101D.
101D is low u, used in voltage amplifier.

Categories: ,
Share:

Description

Psvane HiFi 101D

Psvane HiFi 101D

Psvane HiFi 101D

Psvane HiFi 101D

Psvane HiFi 101D

101D is low u, used in voltage amplifier.

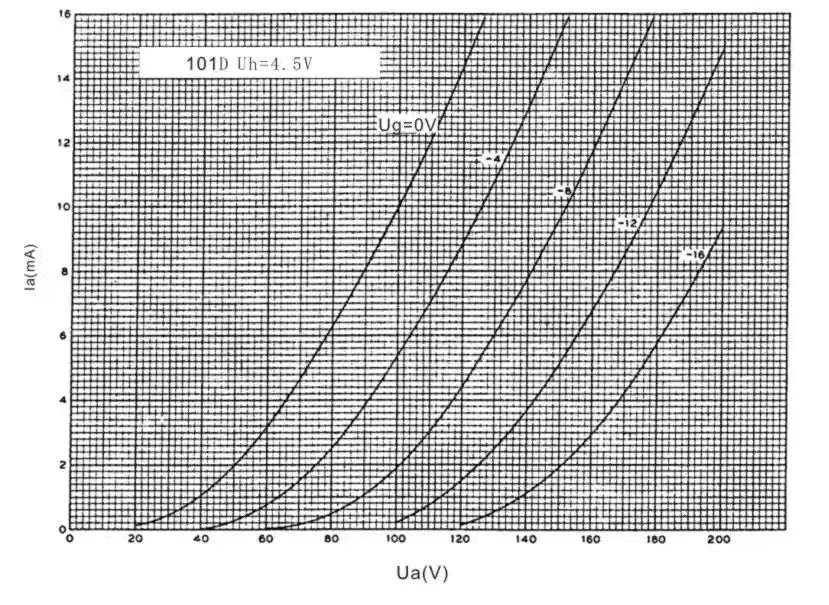

typical working parameter
UH 4.5 V
IH 1.0 A
Ua 190 V
Ug -14   V
Ia 10 mA
Amplification factor 6.2
output power ≥ 200 m W

Direct Interelectrode Capacitances
input 6.4 pF
output 4.4 pF
gride to plate ≤ 2.9 pF

limited parameter minimum maximun
UH 4 5 V
Ua 400 V
Pa 15 W
Ia 20 mA
