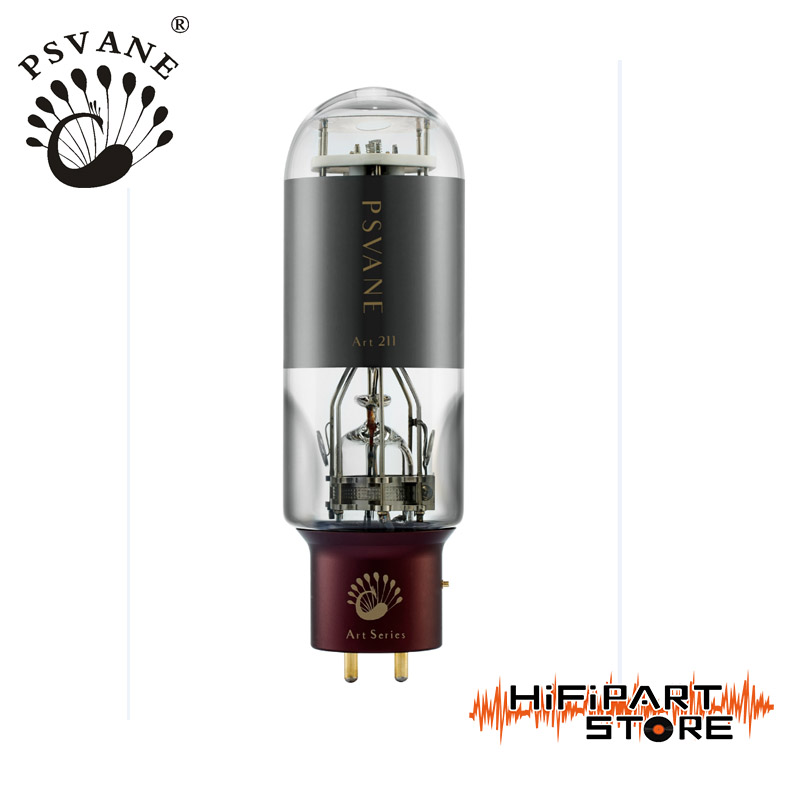

PSVANE ART 211-TIII Vacuum Tube
The PSVANE ART 211-TIII Vacuum Tube is a premium choice for audiophiles and those seeking high-end audio systems. It provides a warm, deep sound with superior stability, ensuring an exceptional listening experience. Engineered with precision, this vacuum tube is perfect for those who demand the best in audio quality.
Technical Specifications
Filament Voltage and Current
| Uf | 10 V |
| if | 3.25 A |
Inter-Electrode Capacitance
| Input Capacitance | 6 pF |
| Output Capacitance | 5 pF |
| Cross-Coupling Capacitance | 14 pF |
Static Parameters
| Parameter | Values |
|---|---|
| Anode Voltage (Ua) | 1250 V |
| Grid Voltage (Ug) | -70 V |
| Anode Current (Ia) | 100 mA |
| Transconductance (Gm) | 3.8 mA/V |
| Amplification Factor (μ) (at Ia = 75 mA) | 12 |
| Load Resistance (RL) | 7 kΩ |
| Output Power (Pout) | 10 W |
Warranty and Service
Each PSVANE ART 211-TIII Vacuum Tube comes with an exactly matched pair service and a 12-month warranty, ensuring top-tier performance and reliability.
